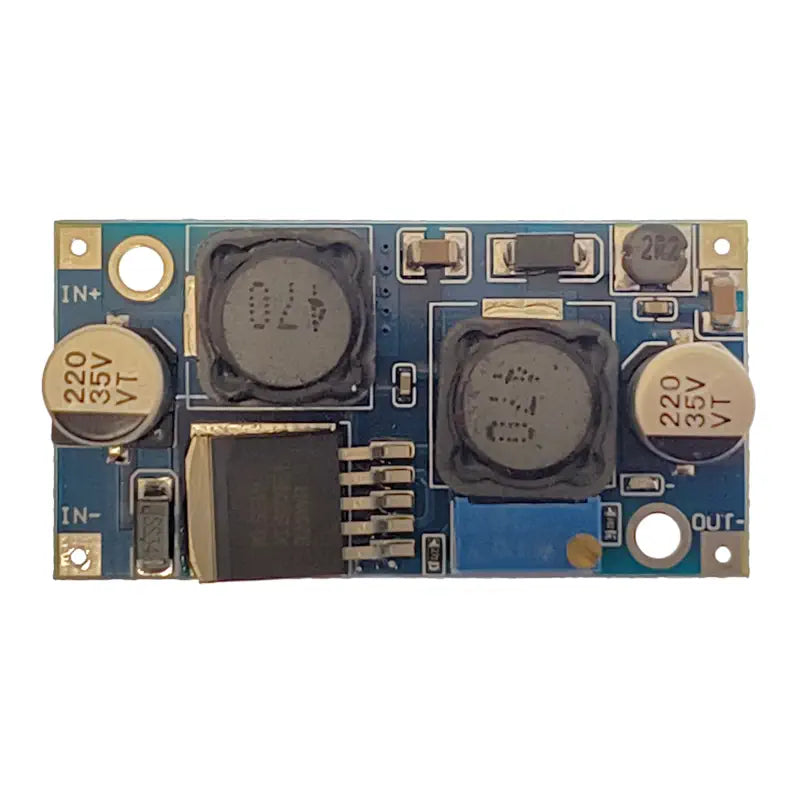

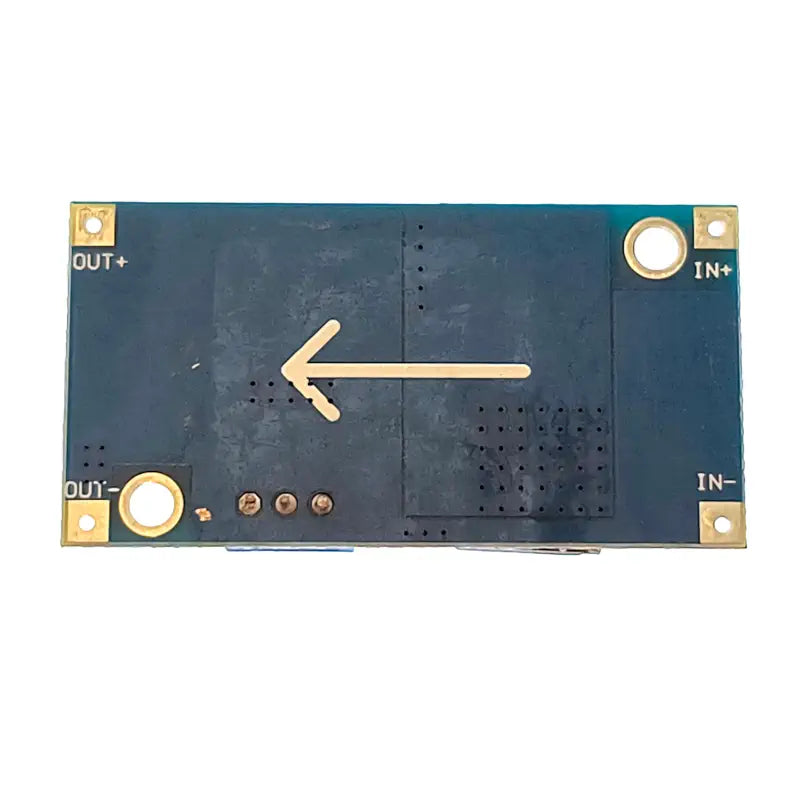

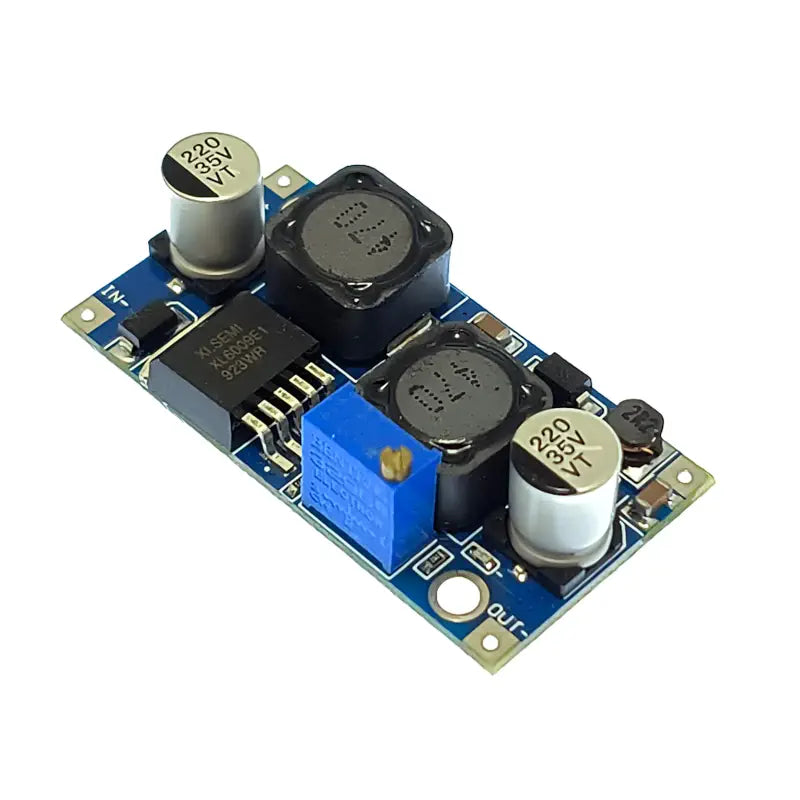

The Buck Boost Converter takes any voltage between 5~32 V and converts it to anything between 1.25 ~ and 35 V. Unlike standard Buck converters, this regulator can also boost the voltage as needed.
Applications
Down-volting from a 12-24VDC supply rail to a local 5VDC
Small photovoltaic or generator regulation (but this is not a MPPT converter, but will stabilize a solar cell output)
1x Buck Boost Converter
48 x 25 x 14 mm (L x W x H)
Module Properties: Non-isolated boost (BOOST)
Rectification: Non-Synchronous Rectification
Input Range: 3.8 ~ 32 V
Output Range: 1.25 ~ 35 V
Input Current: 3 A ( max ), no-load 18 mA (5V input , 8V output , no-load is less than 18 mA. Higher the voltage, the greater the load current.)
No-load Current: 18 mA
Conversion efficiency: < 94 % (greater the current, the lower the efficiency)
Switching frequency: 400 kHz
Output Ripple: 50 mV (the higher the voltage, the greater the current, the greater the ripple)
